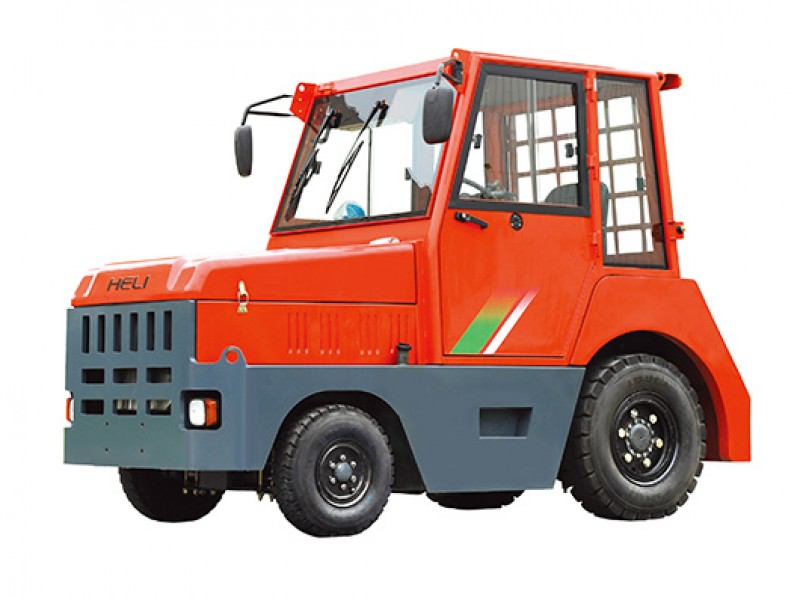

G series 3-3.5t internal combustion tow tractor
G series 3-3.5t internal combustion tow tractor is a new G series diesel hydraulic drive tractor developed by Heli. The whole tractor makes full use of the company’s mature design and manufacturing technology. The whole tractor consists of body system (including counterweight), power system, transmission system, variable speed control system, service brake system, throttle control system, steering system, electrical system, Front and rear suspension, steering axle, drive axle, traction pin mechanism, cab and other parts.
| Parameter
|
Unit
|
QYCD30-WX1G | QYCD35-WX1G | |
|---|---|---|---|---|
| Maxmun traction
|
kN | 30 | 35 | |
| Maximum forward speed(unload) | km/h | 26 | ||
| Minimum turning radius
|
mm | 3500 | ||
| Tractor weight (contains oil and water) | kg | 4870 | 5370 | |
| Overall dimensions
|
L | mm | 3325(Without front traction base) | |
| W | mm | 1500 | ||
| H | mm | 2220(To the top of the cab) | ||
| Ground clearance of center line of traction base | mm | 450 | ||
| Gearbox (variable speed type)
|
|
Continuously variable transmission(Torque converter diameter 315)
|
||
